Aluminun

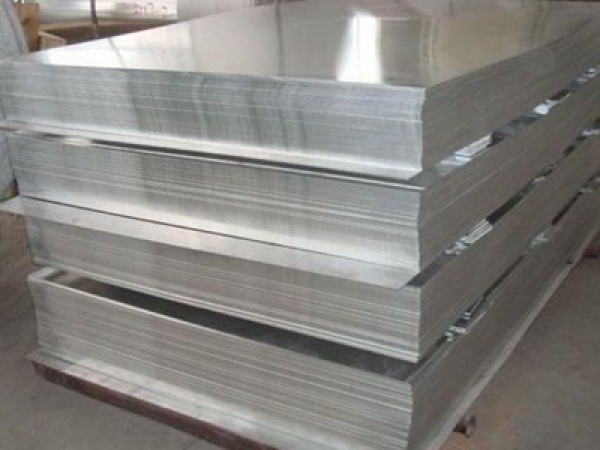

Aluminum Plate
Aluminum Plate -Aluminum sheet grade:
|
Grade |
1000 Series:1050 1060 1070 1100 1200 1235 etc |
pure aluminum |
|
2000 Series: 2011, 2014, 2017, 2024 etc |
Aluminum copper alloy |
|
|
3000 Series: 3003 3004 3005 3104 3105 3A21 etc |
Aluminum manganese Alloy |
|
|
4000 Series: 4A01 4045, 4343 etc |
Aluminum silicon alloy |
|
|
5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 etc |
Aluminum magnesium alloy |
|
|
6000 Series: 6061 6063 6082 6A02 etc |
Aluminum magnesium silicon alloy |
|
|
7000 Series: 7075, 7005.7050,ect |
Aluminum magnesium silicon copper alloy |
|
|
8000 Series: 8006 8011 8079 etc |
Aluminum foil alloy |
Parameters of Aluminum Plate -Aluminum sheet
|
Division |
Description |
Application |
Feature |
|
1000 SERIES |
1050 1060 1070 1100 1235representative series aluminum plate is also known as pure aluminum, in the series in 1xxx series belongs to all the alumina quantity of a maximum number of series. Purity can achieve 99.00% above. |
Utensil, decoration, Reflecting plate, printing plate, heatproof plate,cookware |
Easy to process and weld,resistant to rust,high,conductibility of electricity and heat,low strength |
|
3000 SERIES |
3xxx series aluminum represents 3003 3004,3005, 3 A21 primarily. And can be called in the 3xxx series aluminum antirust aluminum production process more outstanding. The 3xxx series aluminum plate is by manganese as the main component. Content at 1.0-1.5 between. Is a rust-proof function better series. Conventional application in the air conditioning, the refrigerator, such as car in damp environment |
Utensil(F/P, inside of rice cooker), aluminum can,material for interior and exterior of building,chemical equipment,Cellular Phone |
20% higher strength than the 1100 series, easily welded and brazed, good antirust,ability Non-heat treatable |
|
5000 SERIES |
5xxx series representatives 5052 5005 5083,5754. The 5000 series aluminum alloy aluminum belong to the more commonly used series, the main elements for magnesium, with magnesium in the amount between 3-5%. And can be called aluminum magnesium alloy. Key features for low density, high tensile strength, elongation rate is high. In the same area under the weight of the magnesium alloy aluminum less than other series. |
Ship board heatproof apparatus, material for interior and exterior of building, Parts of Electronic tools.Automobile Components |
Excellent corrosion resistance andweld ability together with Easy to process and |
|
weld and superior hardness &heatproof |
|||
|
Can be anodized for increased corrosion resistance |
|||
|
6000 SERIES |
6xxx series represents 6061 mainly contain magnesium and silicon of two elements, so focused on the 4000 series and the advantages of the 5000 series 6061 is a cold treatment aluminum forging products, apply to fight against corrosion, oxidizing demanding applications. |
IT equipment & facility, |
Easy to process , good corrosion resistance, high toughness and processed without distortion after heat-treatable, superior surface treatment |
|
Mould material, motor material, automatic line, machine & plant etc |
|||
|
7000 SERIES |
7000 aluminum alloy is another common alloy, wide variety. It contains zinc and magnesium. The best strength in the common aluminum alloy is 7075 alloy, but it can't be welded, and its corrosion resistance is rather poor, many manufacturing parts with CNC cutting is 7075 alloy. |
The aerospace industry & High strength accessories |
7000 series is high tensile to process with special alloy |
Related alloy and Specification for Aluminum Plate -Aluminum sheet
|
Description |
Alloy |
Temper |
Sizemm |
Norms & |
||
|
Thickness |
Width |
Length |
Standards |
|||
|
Non-heat-treatable |
1xxx, 3xxx, |
O,F,H111,H112,H12, |
0.2~1.0 |
500~2500 |
900~1700 |
YS/T91 |
|
8xxx series |
H14,H16,H18,H19, |
GB/T3880 |
||||
|
H22,H24,H26 |
GJB1541 |
|||||
|
GJB2662 |
||||||
|
1.1~2.0 |
900~2500 |
500~4000 |
ASTM |
|||
|
2.1~4. 0 |
900~2500 |
|||||
|
4.0~150 |
900~2400 |
|||||
|
5xxx series |
O,F,H111,H112,H12, |
0.2~1.0 |
1000~1500 |
2000~10000 |
GB/T3880 |
|
|
H14,H16,H18,H19, |
1.1~2.0 |
1000~2200 |
GJB1541 |
|||
|
H32,H34,H36, |
2.1~4.0 |
1000~2500 |
GJB2662 |
|||
|
H38,H321 |
4.0~150 |
1000~2400 |
ASTM |
|||
|
Heat-treatable |
2xxx, 6xxx, |
O,F,H111,H112, |
0.5~1.0 |
1000~2200 |
2000~10000 |
YGB/T3880 |
|
7xxx series |
T3,T4,T6,T7 |
1.1~2.0 |
1000~2500 |
GJB1541 |
||
|
2.1~200 |
1000~2500 |
GJB2662 |
||||
|
ASTM |
||||||
|
T351,T451, |
5.0~150 |
1000~2500 |
2000~10000 |
GJB1741 |
||
|
T651,T851 |
Q/SWA10204 |
|||||
|
Braze welding |
LQ1, LQ2, |
O,H24 |
0.5~4.0 |
1000~1800 |
2000~10000 |
YS/T69 |
|
sheet |
LQ3 |
|||||
|
Tread plate |
1x,3x,5x |
O,H22,H24,H26 |
Bottom thick |
1000~1600 |
2000~10000 |
GB/T3618 |
|
series |
1.0~4.0 |
Q/EL432 |
||||
|
Curtain wall sheet |
1x,3x series & 5005,5052 |
O,H14,H24 |
1.5~4.0 |
914~2200 |
1500~5500 |
YS/T429.1 |
|
EL/X282 |
||||||
