HE-A (IPBL) beams, European Wide Flange H Beams
"Hea" beams belong to the one of European standard steel H section, which has the wide flange so also known as wide flange beam. Our factory manufacture steel "Hea" beam according to the European standard of hot-rolled structure steel product to carry out, which is EN 10025, for size tolerance of "Hea" beam, according to the European standard for structural steel I and H section on shape and dimensions to carry out, which is EN 10034. In general, the length of "Hea" beam is 12 meters, but our factory can be customized the length, such as 3,6,9, meters, etc, So far, have a lot of steel grade can be available, which is S235J0, S235JR, S275J0, S275JR, S355J0, S355JR, can meet a variety of steel project. European wide flange beam mainly used in steel structure bearing support of industrial structure, steel pile and supporting structure of underground engineering, In addition to, we can provide hot dip galvanizing serve for "Hea" beam, hot dip galvanizing standard as below:
|
Hot Dip Galvanizing Standard |
||
|
Country |
Standard code |
Standard Name |
|
China |
GB/T13912-2002 |
Metallic coatings-Hot dip galvanized coatings on fabricated iron and steel products specification |
|
GB/T3091-2001 |
welded steel pipe for low pressure liquid delivery |
|
|
GB2694-2003 |
Transmission Line Tower -Technical Requirements for Manufacturing |
|
|
JT/281-1995 |
Corrugated sheet steel beams for expressway guardrail |
|
|
Internation |
ISO1461(1999) |
Hot dip galvanized coatings on fabricated iron and steel articles— Specifications and test methods |
|
Japanese |
JISH8641-1999 |
Hot dip galvanized coatings on fabricated iron and steel products articles specification and test methods |
|
American |
ASTM A123/A 123M-02 |
Standard Specification for Zinc (Hot-Dip Galvanized) Coatings on Iron and Steel Products |
Feature:
★Meet European standard EN 10025 EN 10024.
★Meet European steel grade: S235J0, S235JR, S275J0, S275JR, S355J0, S355JR.
★The length can be customized.
★Hot dip galvanizing serve for wide flange beam.
Our factory can supply specification of European wide flange beams from Hea 100 to Hea 900, if you want to know our price for Hea beam, contact our sales by email please and tell the length, steel grade, surface, quantity for getting exact and quickly offer.
|

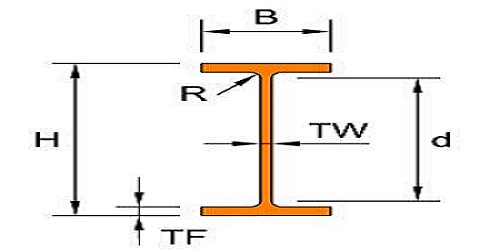

Specification |
Weight |
H |
B |
TW |
TF |
|
KG/M |
mm |
||||
|
HE 100 A |
16,7 |
100 |
96 |
5 |
8 |
|
HE 120 A |
19,9 |
120 |
114 |
5 |
8 |
|
HE 140 A |
24,7 |
140 |
133 |
5,5 |
8,5 |
|
HE 160 A |
30,4 |
160 |
152 |
6 |
9 |
|
HE 180 A |
35,5 |
180 |
171 |
6 |
9,5 |
|
HE 200 A |
42,3 |
200 |
190 |
6,5 |
10 |
|
HE 220 A |
50,5 |
220 |
210 |
7 |
11 |
|
HE 240 A |
60,3 |
240 |
230 |
7,5 |
12 |
|
HE 260 A |
68,2 |
260 |
250 |
7,5 |
12,5 |
|
HE 280 A |
76,4 |
280 |
270 |
8 |
13 |
|
HE 300 A |
88,3 |
300 |
290 |
8,5 |
14 |
|
HE 320 A |
97,6 |
300 |
310 |
9 |
15,5 |
|
HE 340 A |
105 |
300 |
330 |
9,5 |
16,5 |
|
HE 360 A |
112 |
300 |
350 |
10 |
17,5 |
|
HE 400 A |
125 |
300 |
390 |
11 |
19 |
|
HE 450 A |
140 |
300 |
440 |
11,5 |
21 |
|
HE 500 A |
155 |
300 |
490 |
12 |
23 |
|
HE 550 A |
166 |
300 |
540 |
12,5 |
24 |
|
HE 600 A |
178 |
300 |
590 |
13 |
25 |
|
HE 650 A |
190 |
300 |
640 |
13,5 |
26 |
|
HE 700 A |
204 |
300 |
690 |
14,5 |
27 |
|
HE 800 A |
224 |
300 |
790 |
15 |
28 |
|
HE 900 A |
252 |
300 |
890 |
16 |
30 |
The picture of hot dip galvanized Hea beam for reference
