CH-British Channels With Taper Flanges

CH-British Channels with taper flanges

CH-British Channels With Taper Tlanges

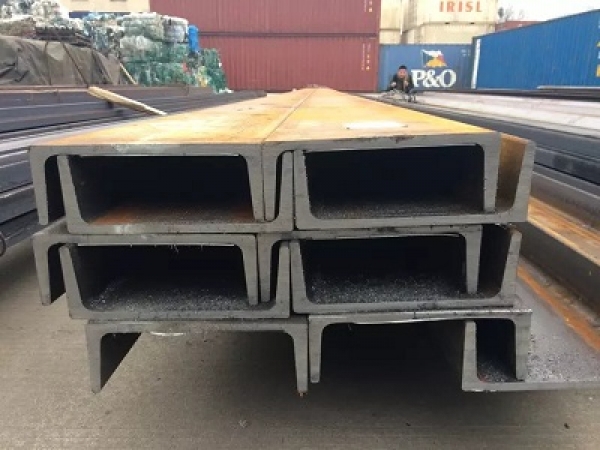

British channels with taper flanges was known as tapered flange channels, the British channels with taper flanges was manufactured by hot-rolled technology to finish according to BS-EN10025-2004, so was also called hot rolled steel channels which was shorted RS channels, the British Channels with taper flanges was widely used for structural steel, we offer the specification as bellow, available steel grade: S235JR, S235JO, S275JR S355JR S355JO S355J2.

British channels with taper flanges CH drawing



Designation

Dimensions

Weight

per meter

H

B

TW

TF

G

mm

mm

mm

mm

kg/m

CH 76x38x7

76.2

38.1

5.1

6.8

6.7

CH 102x51x10

101.6

50.8

6.1

7.6

10.4

CH 127x64x15

127

63.5

6.4

9.2

14.9

CH 152x76x18

152.4

76.2

6.4

9

17.9

CH 152x89x24

152.4

88.9

7.1

11.6

23.9
