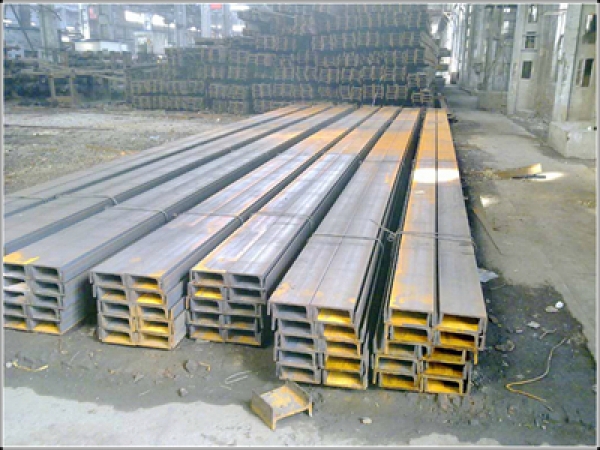

JAPANESE STANDARD Steel U CHANNEL


OneSteelMetals is one of the largest stockists of china, we supply Japanese standard channel with high quality and reasonable price for every importer. It was manufactured by China top steel mill.

Available steel grade for steel U channel bar: SS400 A36

Quality standard China Japanese standard channel bar:JISG3192-1994

Size tolerance standard for Japanese standard channel bar: JISG3192-1994

Available length for Japanese standard channel: 6-16M

Surface: painted OR galvanized

One Steel metals supply Japanese standard channel as follow table, including weight of per meters and steel properties.

Japanese standard channel beams

U SECTION

DEPTH

WIDTH

THICK

WEB

Weight

H

 B

t2

t1

kg/m

mm

mm

 mm

mm

75 x 40

75

40

7

5

6.92

100 x 50

100

50

7.5

5

9.36

125 x 65

125

65

8

6

13.4

150 x 75

150

75

10

6.5

18.6

150 x 75

150

75

12.5

9

24

180 x 75

180

75

10.5

7

21.4

200 x 80

200

80

11

7.5

24.6

200 x 90

200

90

13.5

8

30.3

250 x 90

250

90

13

9

34.6

250 x90

250

90

14.5

11

40.2

300 x 90

300

90

13

9

38.1

300 x 90

300

90

15.5

10

43.8

300 x 90

300

90

16

12

48.6

380 x 100

380

100

16

10.5

54.5

380 x 100

380

100

16.5

13

62

380 x 100

380

100

20

13

67.3
